174.5KW 6T 3.7M3 Front Wheel Loader ZL60H With Shangchai Diesel Engine

CHANGLIN WEA CO., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

174.5KW 6T 3.7M3 Front Wheel Loader ZL60H With Shangchai Diesel Engine

Brand Name : Changlin

Model Number : ZL60H

Certification : Provided

Place of Origin : China

MOQ : 1

Price : USD14500/unit

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 50 unit/momth

Packaging Details : Nude

Rated load : 6000KG

Rated bucket capacity : 3.7m3

Dump Clearance : 3325mm

Dump Reach : 1433mm

Max. drawing force : 180KN

Diesel engine : Shangchai SC11CB240.1G2B1

Rated output : 174.5KW

Transmission : ZF 4WG200

Gear positions : 4 forward, 3 reverse

Length×Width×Height : 8714*2900*3550mm

Operating weight : 19500KG

Wheel base : 3300mm

Size of tire : 23.5-25-20PR

Fuel : 350L

Oil for hydraulic system : 245L

System pressure : 16MPa

Contact Now

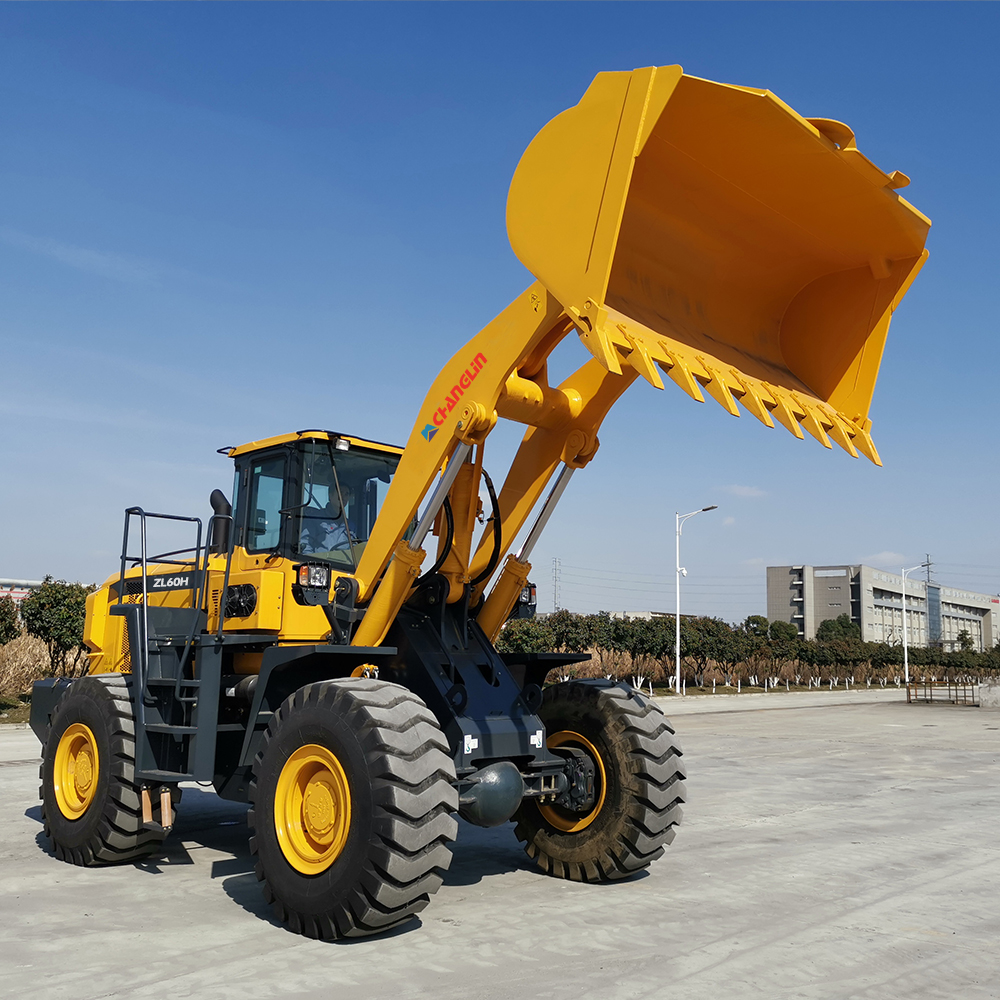

WHEEL LOADER  ZL60H




ZL60H wheel loaders are CHANGLIN's fourth generation of construction equipment designed with large vehicle body and long wheelbase to deal with heavy loads in various working conditions. The ZF gearbox adopted in the wheel loader enables better power matching and more comfortable control. The ZL60H wheel loader is designed with a range of new features, functions and state-of-the-art technological improvements, all of which contribute to enhanced work efficiency, superior performance, increased productivity and higher operation safety.



Length(with bucket on ground)

          8714mm

Width(to outside of wheels)

          2900mm

Bucket width

          3048mm

Height(To the top of the cab)

          3550mm

Wheel base

          3300mm

Rated bucket capacity

          3.7M3

Max. dump clearance

          3325mm

Dump reach

          1433mm

Min. turning radius(wheel)

          6240mm
Engine Model          SC11CB240.1G2B1

Rated output

           174.5KW

Rated speed

           2200(r/min)

Max. drawing force

          180kN

Size of tire

          23.5-25-20PR

Type of traveling brake

          Caliper disc brake

Air pressure

           6-7.5(kgf/cm2)

Fuel(diesel)

           350 L

Oil for converter and gear box

           45 L

Oil for hydraulic system

           245 L
Transmission Model            4WG200



174.5KW 6T 3.7M3 Front Wheel Loader ZL60H With Shangchai Diesel Engine



174.5KW 6T 3.7M3 Front Wheel Loader ZL60H With Shangchai Diesel Engine













FEATURES

174.5KW 6T 3.7M3 Front Wheel Loader ZL60H With Shangchai Diesel Engine

1.Frame  The innovative design of the main hinge of the frame "matches" the tapered roller bearing structure to increase the contact area and ensure the reliability of the hinge even under severe working conditions;









174.5KW 6T 3.7M3 Front Wheel Loader ZL60H With Shangchai Diesel Engine

2. Transformation System

ZF4WG200 dual-transformation system is adopted, and the gearbox is an electro-hydraulic power-shift fixed-axis type, which can realize forced deceleration, easy and safe operation, and high operating efficiency;

174.5KW 6T 3.7M3 Front Wheel Loader ZL60H With Shangchai Diesel Engine

3.Hydraulic system

Based on simulation and test verification, innovative design of the hydraulic system for diverting heat dissipation can make the hydraulic system of the whole machine obtain reasonable and sufficient heat dissipation under any working conditions, and improve the efficiency of the radiator and the reliability of the hydraulic system;





 174.5KW 6T 3.7M3 Front Wheel Loader ZL60H With Shangchai Diesel Engine

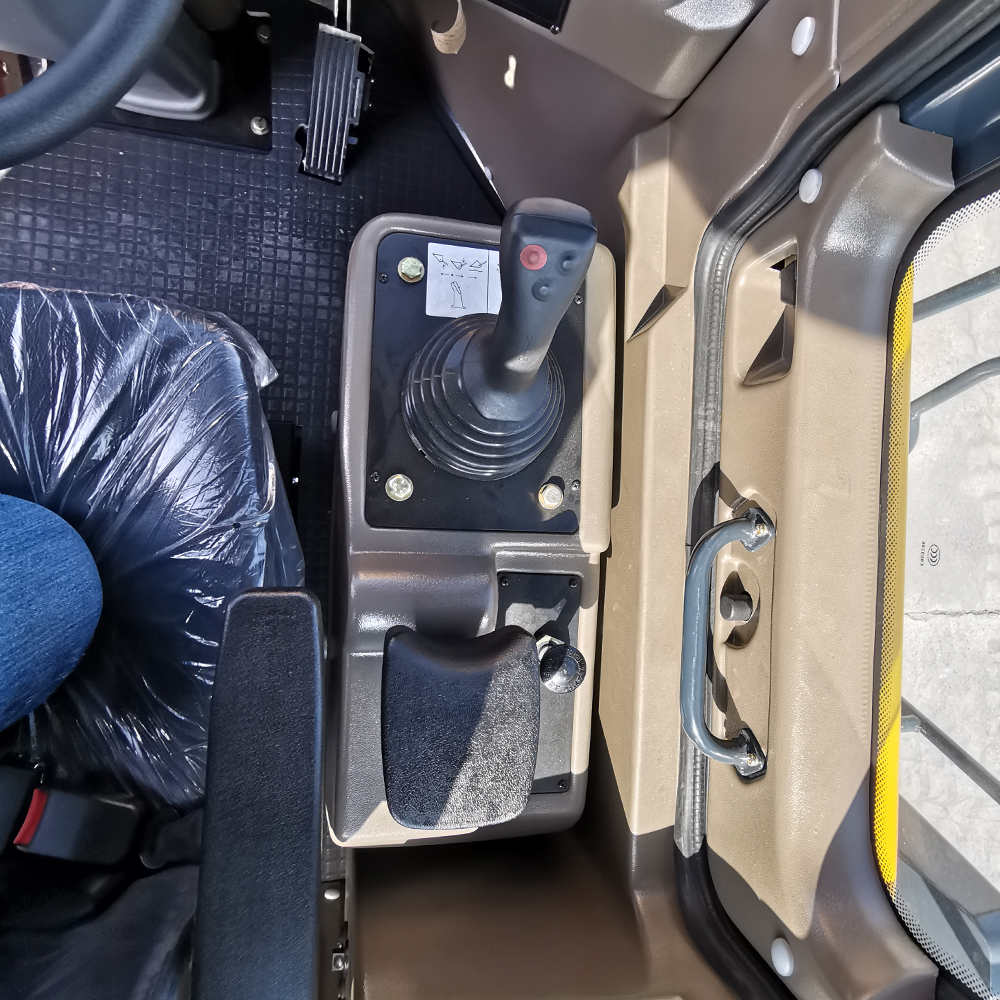

4.Canbin The large-opening design of the T-series exterior cover allows both the front air inlet and rear air outlet of the radiator to be opened. The new cab is upgraded, with super strong sealing, and the noise of the whole machine is far lower than the national standard;



FAQ




1.Why choose us?
CHANGLIN WEA is committed to offer not only products with high quality and performance and competitive
price, but also in-time delivery and comprehensive 7*24 after-sale services.


2.What is the product range of our factory ?
CHANGLIN WEA is a large-scale machinery manufacturing enterprise primarily specializes in supplying excavator,wheel
loaders,palm oil tractor and related attachments. We can also customize non-standard products according to customer's
requirements.

3.What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight
with the terms we agreed can also be accepted.

4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. and also EPA approval will be available if
needed.

5. How about the delivery time?
About standard products, we always have in stock and can
deliver immediately. But customized products will take more time, depending on the requirements of the order.
